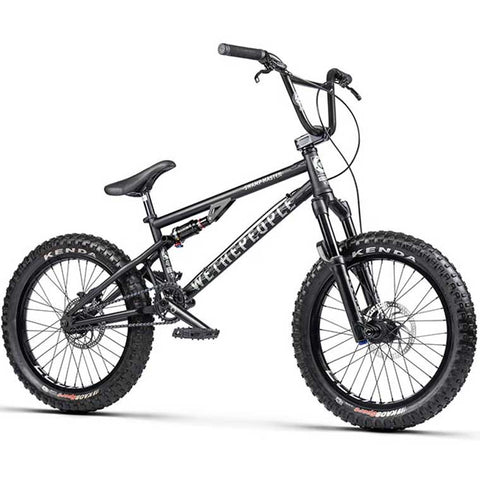

We the People Swampmaster
DESCRIPTION
FRAME: WETHEPEOPLE "SWAMP MASTER" frame, 4130 full crmo, (Rockshox Monarch RL* / Suntour Raidon Lo* - depending on availability)
FORK: MANITOU "MACHETE J-UNIT COMP" fork, custom tuned, 100mm travel, thru-axle
BARS: WETHEPEOPLE "SWAMP MASTER" bar, post liquid heat-treated 4130 crmo
Grips: SALT "EX" grips, 154mm, flangless
STEM: ÉCLAT "BURNS topload stem, cnc alloy, 51mm reach
HEADSET: WETHEPEOPLE "COMPACT" int. headset, sealed bearing
LEVER: BENGAL "ARES 3" disc brake levers
BRAKES: BENGAL "ARES 3" hydraulic disc brakes, 160 mm rotors
CRANKS: WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline
BB: WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing
PEDALS: WETHEPEOPLE "LOGIC" pedals, nylon/fiberglass
CHAIN: ÉCLAT "DIESEL" chain
SPROCKET: WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 28t
DRIVER: 1pc cassette driver, 9t, sealed bearing, 6 pawl, 120 POE
FRONT HUB: ÉCLAT "EXILE" disc front hub, BOOST 110mm, fully sealed, 15mm thru axle, 36h
REAR HUB: ÉCLAT "EXILE" disc cassette hub, fully sealed, 3/8" female bolts, 36h, 120 POE
FRONT RIM: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
REAR RIM: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
SEAT: ÉCLAT "BIOS" pivotal seat, slim padded
SEAT POST: WETHEPEOPLE "TEAM" pivotal seat post, 200mm long, 6061-T6 alloy
SEAT CLAMP: integrated seat clamp
TIRES: KENDA "KAOS" tires, 20"x 2.6", front & rear
WEIGHT: 14.5kg / 31.97lbs
FRAME
TOP TUBE LENGTH: 21.5"
CHAIN STAY LENGTH: 14.1"-14.8"
HEAD TUBE ANGLE: 71°
SEAT TUBE ANGLE: 70°
BB HEIGHT: 12.15"
STANDOVER HEIGHT: 9.5"
HANDLE BAR
BAR RISE: 8"
BAR WIDTH: 29.15"
BAR BACK SWEEP: 11°
BAR UP SWEEP: 2.5°
