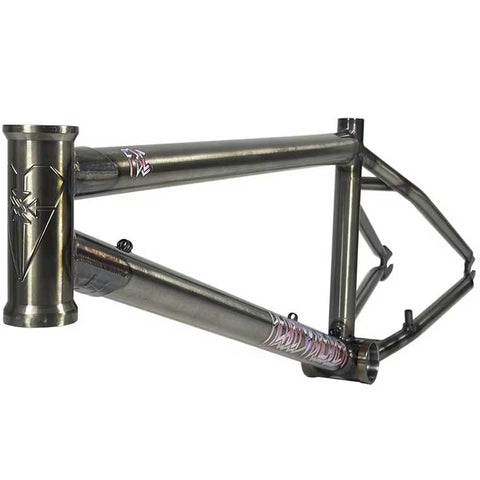

Fit Bikes Hartbreaker frame

$549.95
TAGS:
Fit Bikes Frames Products
SKU: 1098314

DESCRIPTION

21", 21.25", 21.5" TT
13.8" - 14.5" CS
74.5° HA
71° SA
11.35" BBH
9.15" SOH
Integrated head tube
Mid BB shell
14mm, 4Q Baked dropouts
welded CS brake mounts, two cable guides on DT, cable stop insert in ST
21” - 5.18 lb (2.35 kg)
21.125” - 5.27 lb (2.39 kg)
21.5” - 5.3 lb (2.4 kg)

Butted Supertherm Top Tube
Straight Gauge Supertherm Down Tube
Double Gussets
Slightly Tapered Seat Stays
Slightly tapered Single Bend Chain Stays
2.4″ tire clearance (even when slammed; S&M tires - others might not fit)
Double Butted Seat Tube
Longer Drop Out Slots
Welded on Chain Stay Brake Mounts
Thru the Seat Tube Cable Routing
Double Down Tube Cable Guides
Engraved Heartbreaker Logo Head Tube
American Made

IDEAL GEARING:
11T
30/11: 13.875 W/Out Half Link
30/11: 14.125 W/ Half Link
30/11: 14.375 W/Out Half Link
28/11: 13.875 W/ Half Link
28/11: 14.125 W/Out Half Link
28/11: 14.375 W/ Half Link
10T
30/10: 14.00 W/Out Half Link
30/10: 14.25 W/ Half Link
28/10: 14.00 W/ Half Link
28/10: 14.25 W/Out Half Link
27/10: 13.875 W/Out Half Link
27/10: 14.125 W/ Half Link
27/10: 14.375 W/Out Half Link
9T
28/9: 13.875 W/Out Half Link
28/9: 14.125 W/ Half Link
28/9: 14.375 W/Out Half Link
27/9: 14.00 W/Out Half Link
27/9: 14.25 W/ Half Link
25/9: 14.00 W/ Half Link
25/9: 14.25 W/Out Half Link
8T
23/8: 13.875 W/ Half Link
23/8: 14.125 W/Out Half Link
23/8: 14.375 W/ Half Link
25/8: 13.875 W/Out Half Link
25/8: 14.125 W/ Half Link
25/8: 14.375 W/Out Half Link
26/8: 14.00 W/ Half Link
26/8: 14.25 W/ Half Link
