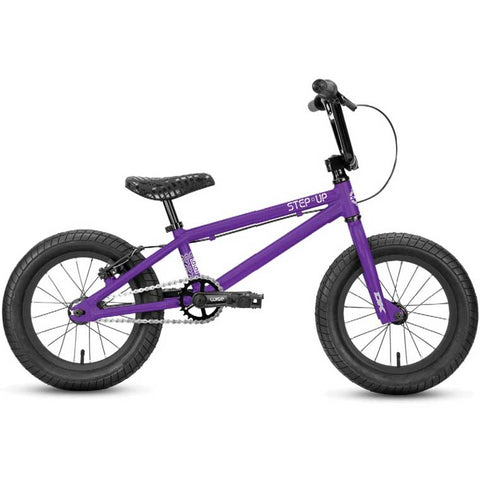

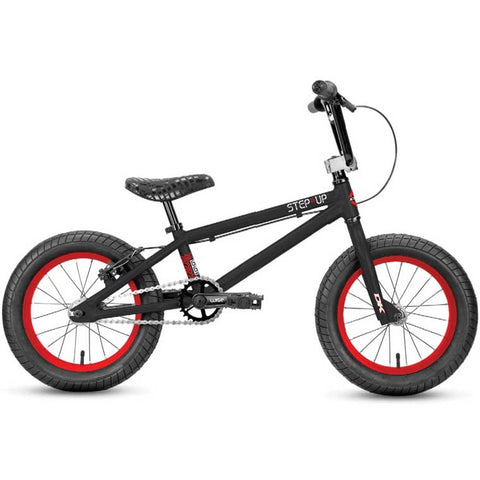

DK Step Up 14"
DESCRIPTION
Top Tube Length 15.5”
Chain Stay Length 11.75”
Head Tube Angle 74º
Seat Tube Angle 71º
Frame 6061 aluminum
Fork 4130 chromoly steerer tube, built-in bearing race, tapered legs
Headset 1” threadless press-in
Stem Front load, 30mm reach
Handlebar 6” rise, alloy
Grips DUO Mini grips
Brake Lever Wise short reach, alloy
Brake Linear V-brake, alloy
BB Euro w/ 4130 chromoly spindle
Sprocket DK 25-tooth
Chain KMC Z-510
Cranks Wise alloy 3-piece, 102mm
Pedals PC mini platform
Front Hub Alloy, sealed, 3/8” axle
Rear Hub Alloy, sealed, 3/8” axle, 9T driver
Rims Alloy, single wall, 20-hole
Tires 14x2.25" street pattern
Seat DK 1-piece padded seat/post combo
Seat Post 22.2mm, alloy, integrated
Seat Post Clamp Alloy
Weight 15lbs 8oz
